PDA Steel Door Window Systems is one of the leading manufacturers and suppliers of slim65 steel tilt-turn window. If you're going to wholesale the newest slim65 steel tilt-turn window, welcome to get quotation from our factory. All customized products are with high quality and competitive price.
Materials and Surface Treatment
- Material: Galvanized Steel
- Surface Treatment: PVDF Coating
Opening Type
- Tilt-and-Turn
Hardware System
- Tilt-and-Turn Hardware:
○ Hinges and multi-point transmission mechanism use a concealed system
○ The tilt-and-turn mechanism is equipped with the standard PDA minimalist handle without a base
Technical Features
- Flush design for frame and sash
- Triple-chamber thermal break structure for enhanced thermal insulation

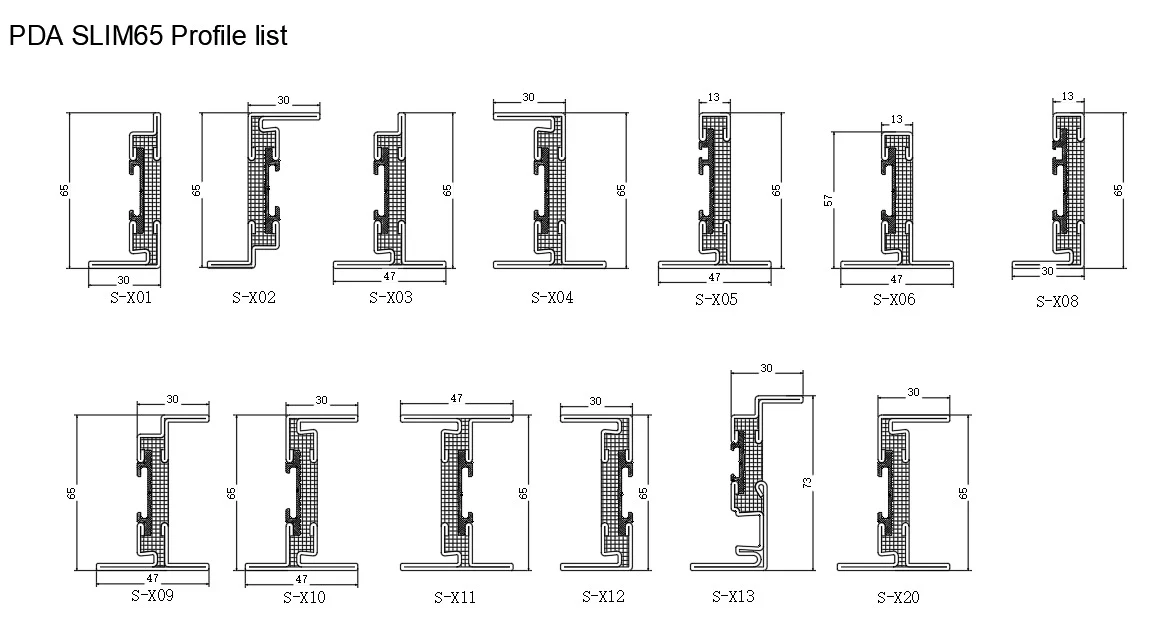

- Cold-rolled steel profile + PA66 thermal break bar + CPUR structure
- Compatible with building openings and curtain wall systems
- Ultra-narrow steel structure design, enhancing the architectural facade performance
Size and Performance
- Minimum Size: 500mm (W) × 600mm (H)
- Maximum Size: 1200mm (W) × 2500mm (H)
- Maximum Single Sash Weight: 150kg
